描述
规格
| 轮圈 | |
| 系列 | Velo |
| 车轮尺寸 | 700摄氏度 |
| 轮胎兼容性 | 开口胎和真空胎（钩式） |

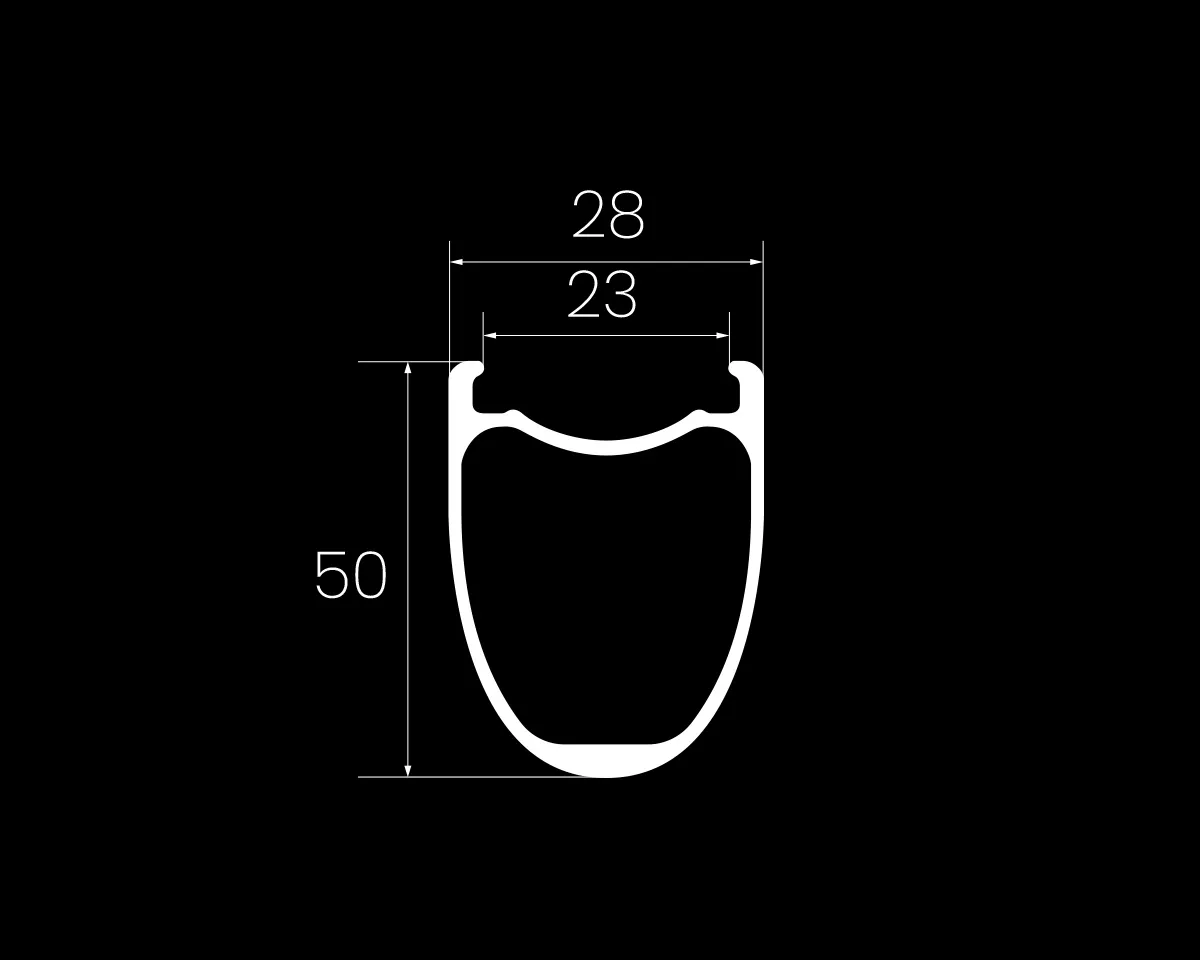

| 轮辋框高 | 50毫米 |
| 内宽 | 21毫米 |
| 外宽 | 28毫米 |
| 轮圈 | |
| 系列 | Velo |
| 车轮尺寸 | 700摄氏度 |
| 轮胎兼容性 | 开口胎和真空胎（钩式） |
| 轮辋框高 | 50毫米 |
| 内宽 | 21毫米 |
| 外宽 | 28毫米 |
| 中心 | |
| 前花鼓间距 | 12×100毫米 |
| 后花鼓间距 | 12×142毫米 |
| 培林 | S&S 陶瓷 |
| 制动方式 | 圆盘（中心锁） |
| 塔基类型 | 50T棘轮扳手 |
| 塔基兼容性 | Shimano HG/Sram XDR |
其他
| 轮圈外观 | 光泽原碳 |
| 重量（对） | 1605±50g（不含真空胎气门嘴和轮圈胶带） |
| 重量（前） | 750±30克 |
| 重量（后） | 855±30克 |
兼容轮胎尺寸700 x 25-43C
| 附加内容 | 无内胎气门嘴（已安装） |
| 骑手体重限制 | 280磅/125千克 |
| 轮胎兼容尺寸 | 700 x 28-30c |
Elitewheels 是边际效益的坚定支持者，并且深知许多小改进可以累积成大效益。Velo Six II 的内圈宽度为 21 毫米，与更宽的轮胎兼容时可改善滚动阻力，这还具有在非理想路面上提高舒适度以及增加潮湿条件下抓地力的额外好处。

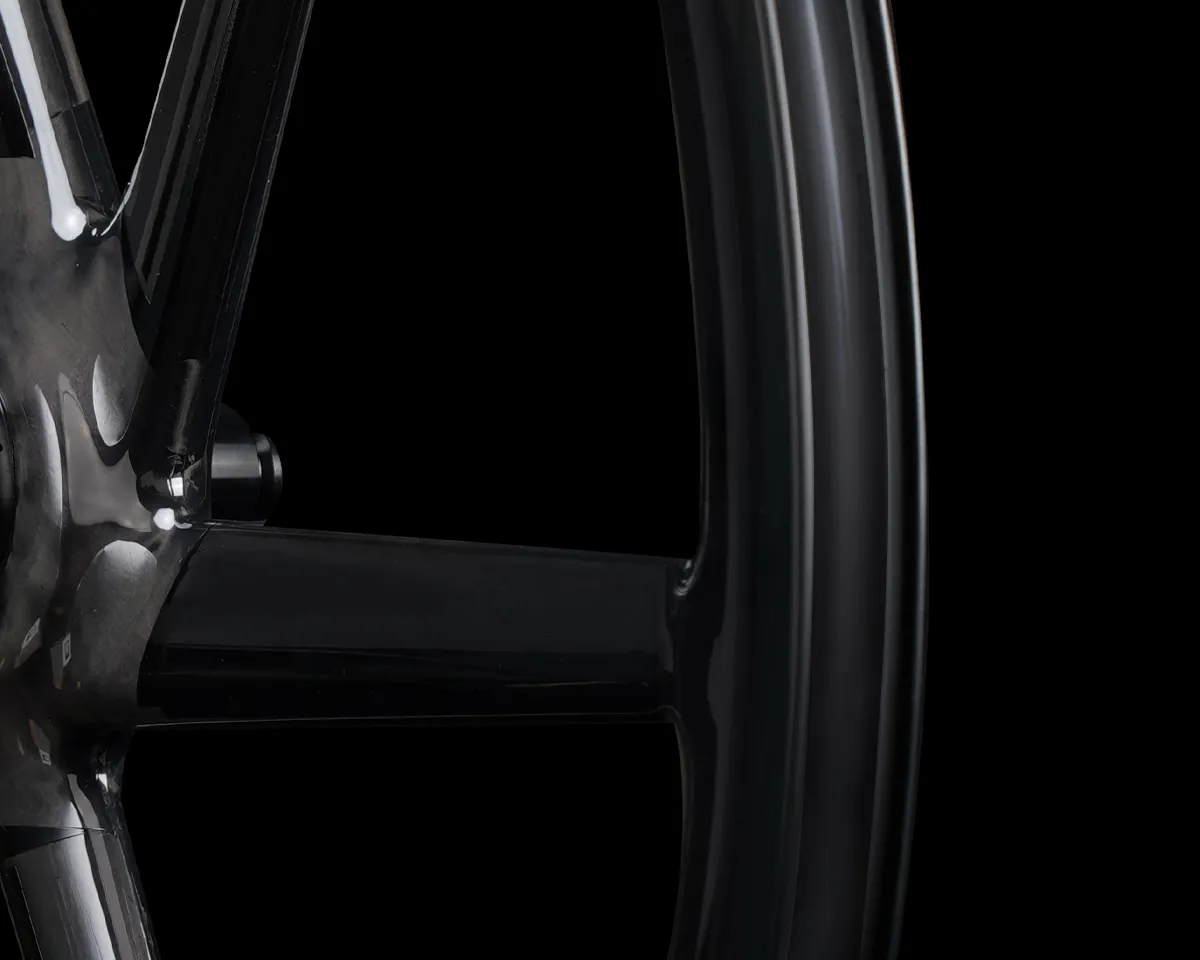

To push performance even further, the rim’s cross-sectional profile has been newly redesigned to significantly boost lateral stiffness. Advanced carbon fiber layering techniques enhance rigidity without adding weight, even with a larger cross-section. In addition, the use of complex surface curvatures and refined contouring dramatically improves overall stiffness. The Velo Six II now delivers greater impact resistance, making it not only faster but tougher than ever.

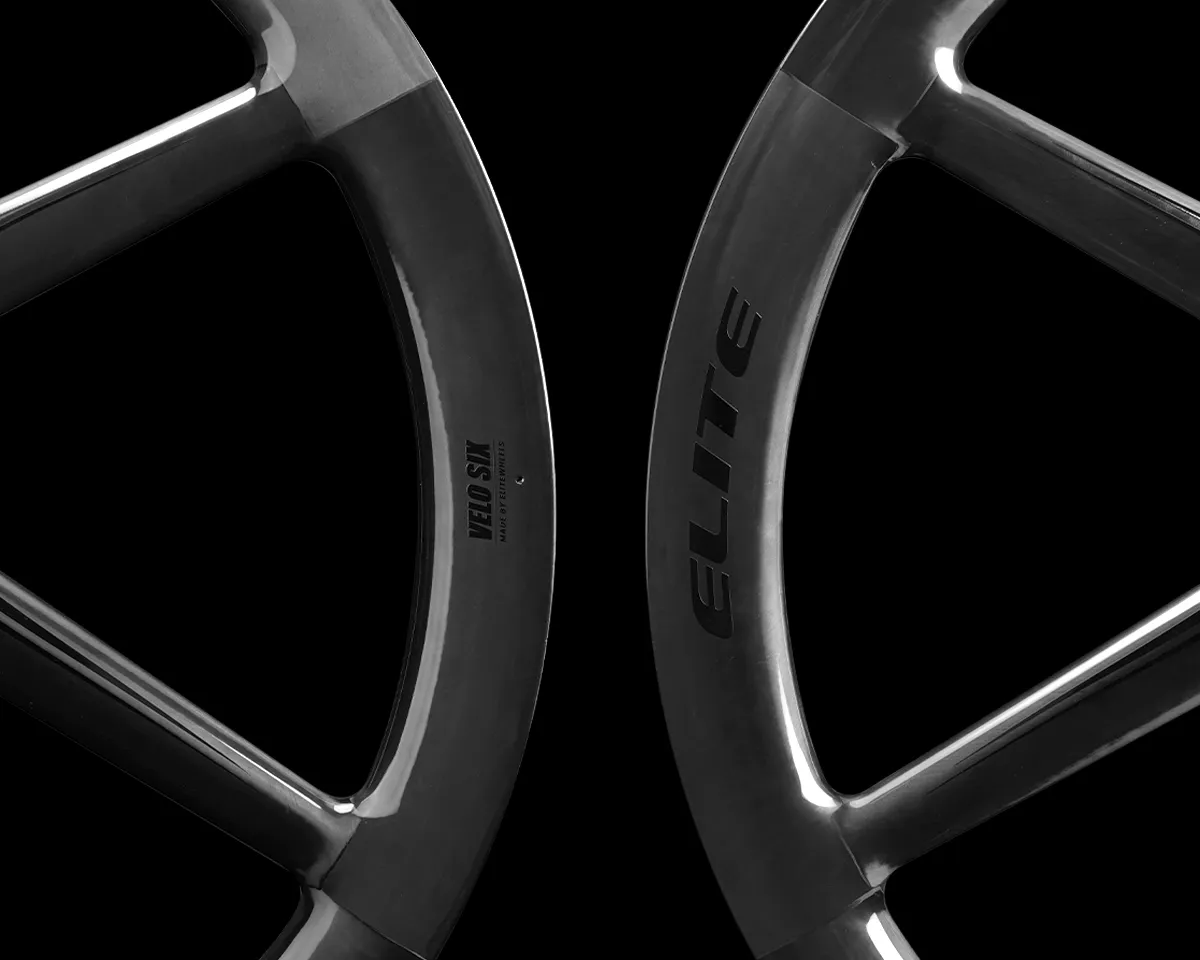

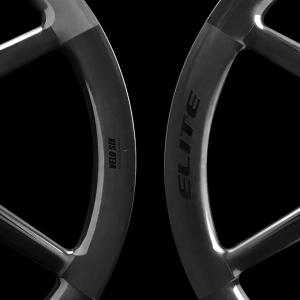

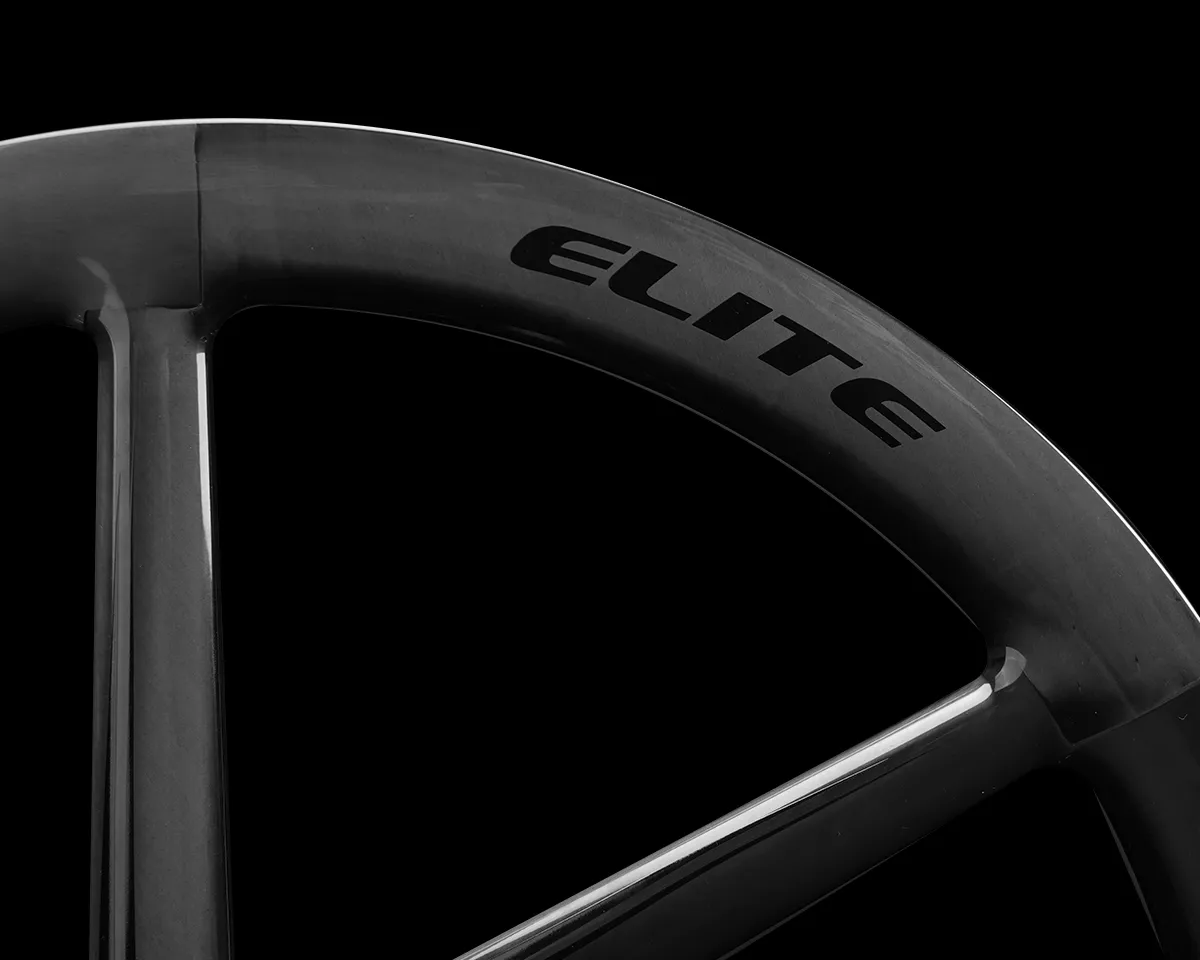

The Velo Six II features Glossy Raw Finish which is created by putting a clearcoat over the rim without additional finish. This allows for you to see the actual UD carbon layup. Any small imperfections that are covered up by traditional Matte, Glossy, 3K, or 12k finish, are made visible. These cosmetic imperfections exist on all carbon wheels regardless of the finish and have no impact on performance or durability.
SPOKES
What separates this wheelset from the pack is the shape of the spokes. While there are other one piece road wheels available, not all of the spokes are designed with aerodynamics in mind. Our engineers have optimized the wheelset to minimize the coefficient of drag through by reducing the spokes’ frontal area and mimicking the ideal teardrop shape.
The connection between the spokes and the rim has also been refined, ensuring a smoother structural transition. These mechanical improvements result in more efficient and seamless power transfer across the wheelset.

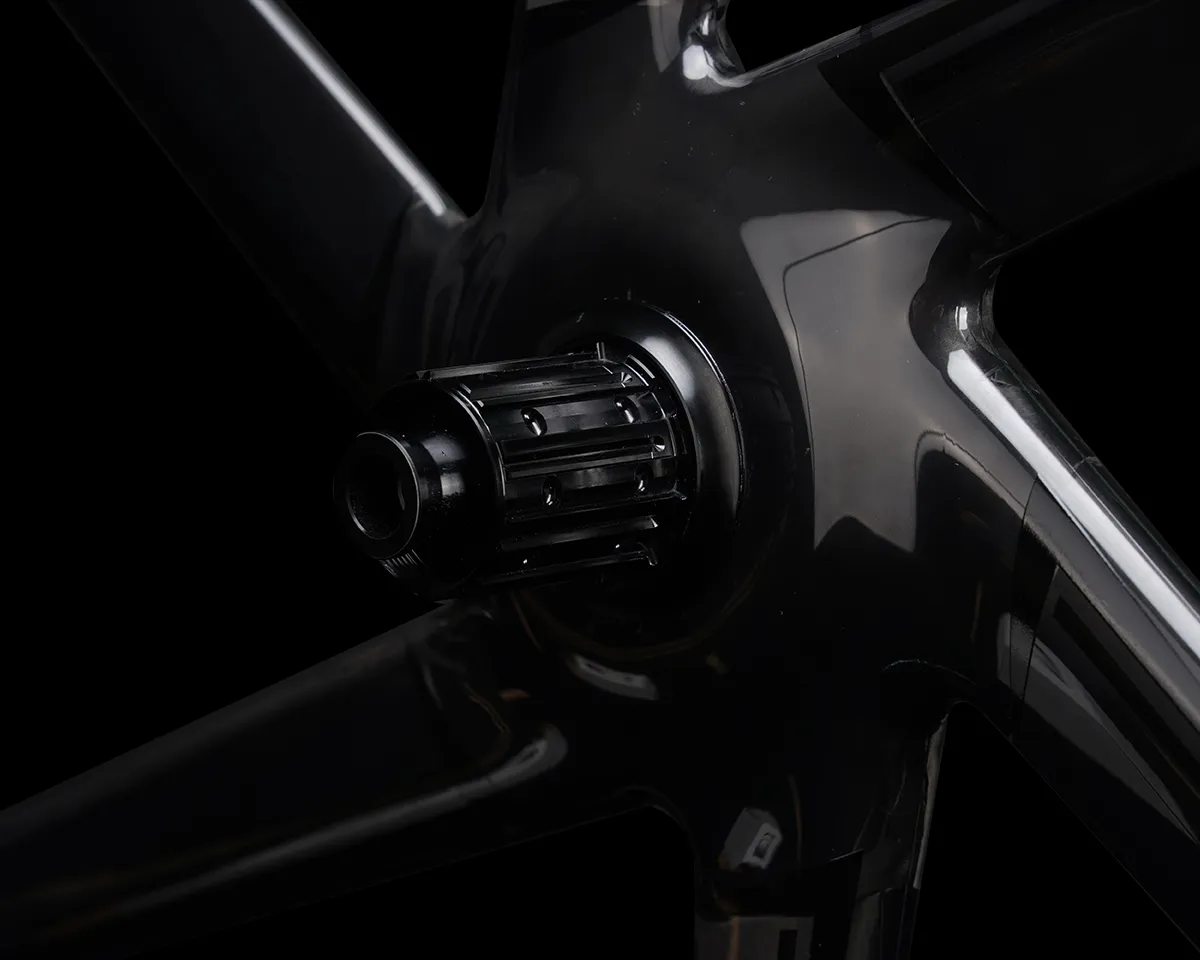

PERFORMANCE HUB
Elitewheels designs and manufactures its own hubs. The front and rear hubs are made of 7075 aluminum which is known for it’s high strength.
Through advanced CAE (Computer-Aided Engineering) analysis, the unique structural characteristics of the rim were identified. This led to a comprehensive hub redesign to better align with the system’s load distribution.
The hub features a 50T ratchet system with a 7.2°engagement angle for quicker response. Unlike traditional flat ratchets, the specially angled tooth surfaces allow automatic alignment, increasing engagement area and improving both stability and reliability. Additionally, the tapered design reduces stress on the ratchet’s tooth surface, minimizing wear and extending the hub’s service life.
CERAMIC BEARINGS

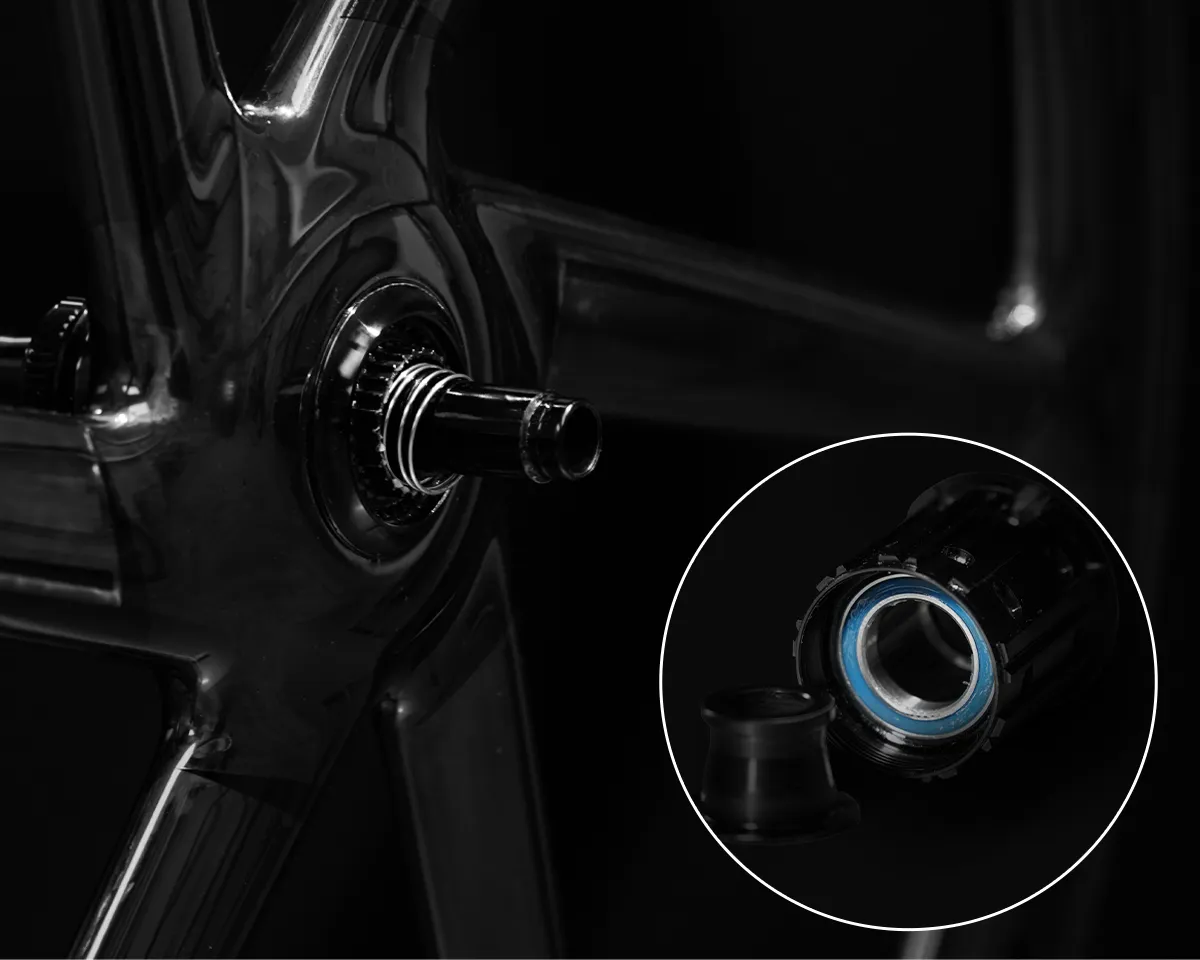

The S&S ceramic bearings in the Velo Six II were specifically chosen for their low rolling resistance and excellent durability. Using Fanuc CNC machines, our hubs are machined to a tolerance of 0.02mm. This precision is especially important for ceramic bearings to minimize rolling resistance and increase longevity.
In order to provide riders with the best wheelsets, we seek to update and improve them as technology advances. Elitewheels reserves the right to change, add or remove the information contained on this website at any time, including equipment, specifications, models, colors, materials, and pricing, without prior notice. The shipped products will be based on the actual order information. Elitewheels thanks you for your understanding and support.
